Our workshop is set up for one job: finding the exact fault in industrial electronics and proving the repair before it leaves. Repair benches, a test area, and storage for spares and the repair queue.

Electronic Point workshop interior, Adityapur — **Fig. 01**The workshop floor

01 · Diagnosis

Find the fault, not just the failed board

Digital storage oscilloscopes for gate-drive, trigger and signal analysis. Isolated variable supplies and true-RMS instruments. Semiconductor, insulation-resistance and hi-pot testing. Thermal inspection to find the hotspots that only appear under load.

Board under test on the oscilloscope — **Fig. 02**Signal analysis

Diagnostic bench with oscilloscope and meters — **Fig. 03**Diagnostic bench

02 · Rework

Component-level repair

SMD and through-hole rework stations, magnified inspection for fine-pitch parts, track repair and via reconstruction, conformal re-coating, and controlled cleaning of contaminated boards. ESD-protected work areas.

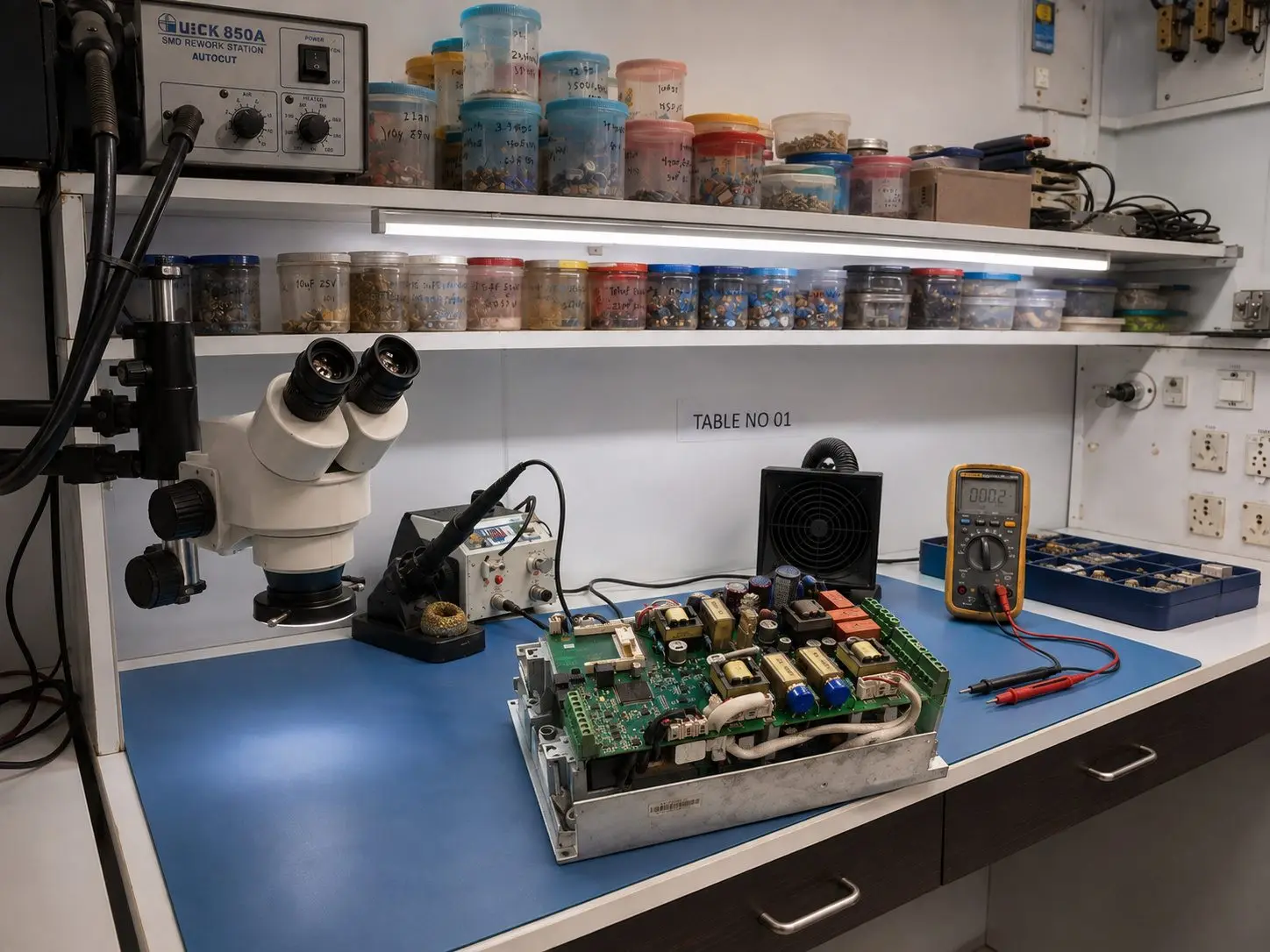

Control board repair under the microscope — **Fig. 05**Board under repair

03 · Load testing

Proven at rated current

A drive-and-motor setup runs repaired drives at rated current for at least 30 minutes. Three-phase variable input lets us check behaviour at brown-out and overvoltage. Extended burn-in before dispatch.

Before dispatch

1: No-load power-up: output voltage, frequency, waveform
2: Test motor connected for the drive rating
3: Full load at rated current, 30 min minimum
4: IGBT and heatsink temperatures checked under load
5: Parameters verified
6: Test report with input and output measurements

Drive boards wired up in a test setup — **Fig. 06**Boards wired into a test setup

Several drives laid out in the test area — **Fig. 07**Drives in the test area

04 · Programming

Parameterisation and copying

Parameter backup, restore and copying between drives, so a repaired or replacement drive goes back with exactly the settings it left with. Drive commissioning software for the major makes, plus PLC and HMI programming.

Drive parameterisation from a laptop — **Fig. 08**Drive parameterisation

**Fig. 08b**Parameter backup and copying

05 · Spares

Spares in stock for quick repair

IGBTs, thyristors, driver ICs, bus capacitors and cooling fans held in stock, plus reference units and an end-of-life sourcing network for parts that are no longer made.
